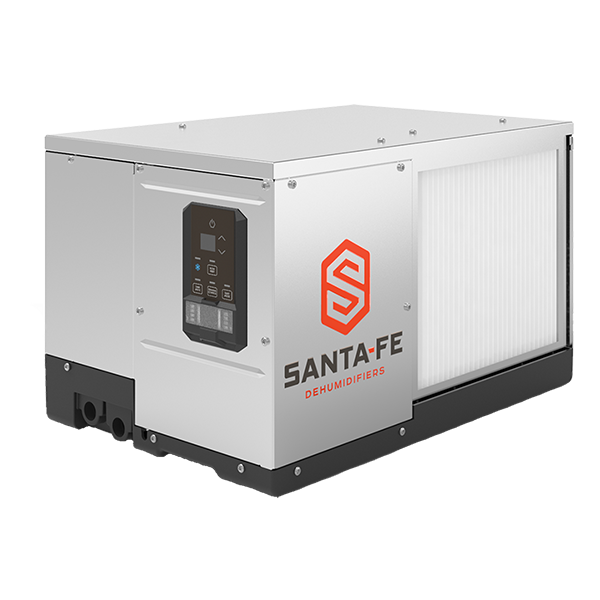

SANTA FE OASIS™105

Key Features

• On-board digital controls
• Horizontal cabinet is conveniently sized for
  installation in crawl spaces, basements and
  ducted HVAC whole house applications
• Engineered for low temperature operation and
  the air flow issues that crawl spaces present
• Ducting options for better air flow and humidity
  control throughout the space
• Auto restart allows the dehumidifier to
  automatically restart after a power outage
• Variable-speed fan:
  – LOW speed for ultra-quiet operation
  – HIGH speed for ducted applications
  – AUTO speed is the most energy efficient
  – HIGH OVERRIDE for high static ducted
  applications
• Dew point cut-out protects from low temperature
  inefficient operation
• Patented Efficiency Capacity Coil Optimization
  (ECCO™) technology featuring corrosion
  resistant double coated coils
• Positive pressure drain that does not require a
  P-Trap, resulting in less maintenance
• Integrated secondary drain pain with dedicated
  float switch port
• Molded base with integrated handles for easy
  movement and installation

Specifications

• Drain Connection 3/4” Threaded Female NPT
• Drain Hose 8’ Direct Gravity Drain Hose (5/8” ID x 7/8” OD)
• Refrigerant R410A, 1 lb. 7 oz.
• Unit Dimensions 24”W x 14.5”H x 16”D
• 24”W x 14.5”H x 27”D w/ optional duct kit
• Unit Weight 59 lbs.

Product ID

• 4041850
